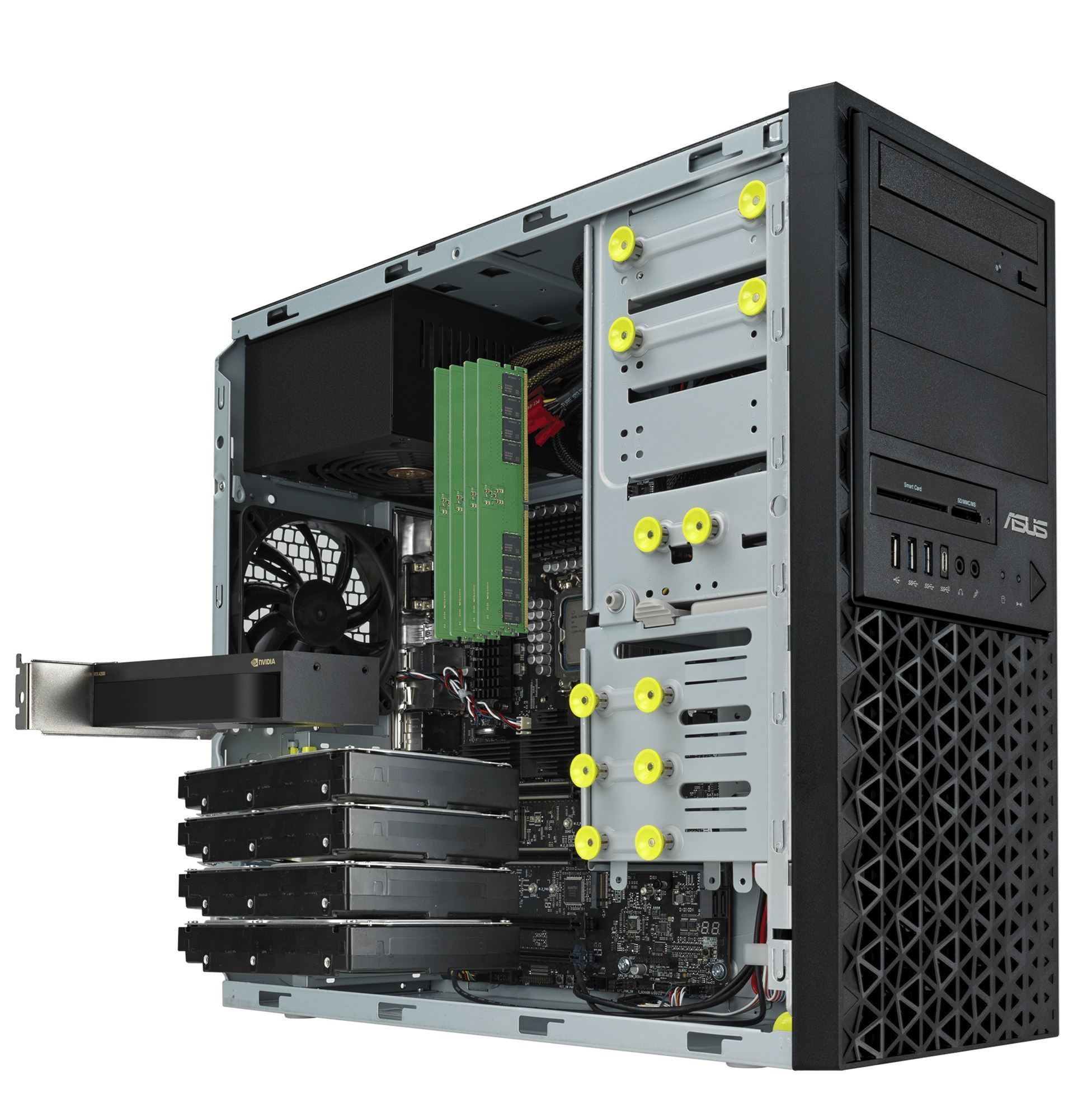

Asus ExpertCenter E500 G9 Workstation i7 14700

Windows 11 Pro - ASUS recommends Windows 11 Pro for business.
Windows 11 Home - ASUS recommends Windows 11 Pro for business.

1 x Socket LGA1700
Intel^®13th & 14th generation Intel^® Core™ i9/i7/i5processors
Intel^®12th generation Intel^® Core™ i9/i7/i5/i3processors

Intel^® W680 Chipset

Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
Dual Channel DDR5 4800/5600 MHz, ECC/non-ECC UDIMM
Memory Size :
32GB, 16GB, 8GB UDIMM* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

Total: 5
Location-1: PCIe x16 slots (Gen5 x16/x8 link, FH, FL)
Location-2: PCIe x1 slots (Gen3 x1 link, FH, FL)
Location-3: PCIe x16 slots (Gen5 x0/x8 link, FH, FL)
Location-5: PCIe x16 slots (Gen4 x4 link, FH, FL)*
Location-6: PCIe x16 slots (Gen3 x4 link, FH, FL)*The bandwidth of PCIe link is shared with M.2_2

Storage Controller :
1 x M.2_1 socket3, up to 2280 type (PCIe Gen4 x4 link), from CPU
1 x M.2_2 socket3, up to 2280 type (PCIe Gen3 x4 link), from PCH
1 x M.2_3 socket3, up to 22110 type (PCIe Gen4 x4 link), from PCH
Intel^® W680 Chipset
8 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )

3 x internal 3.5" Drive bays
1 x internal 2.5" Drive bay

2 x 5.25" media bays
(Options: No ODD/DVD-RW)

2 x Intel^® I225-LM 2.5GbE LAN

Up to 1 GPU Card

Please find the latest GPU support from https://servers.asus.com/support/gpu

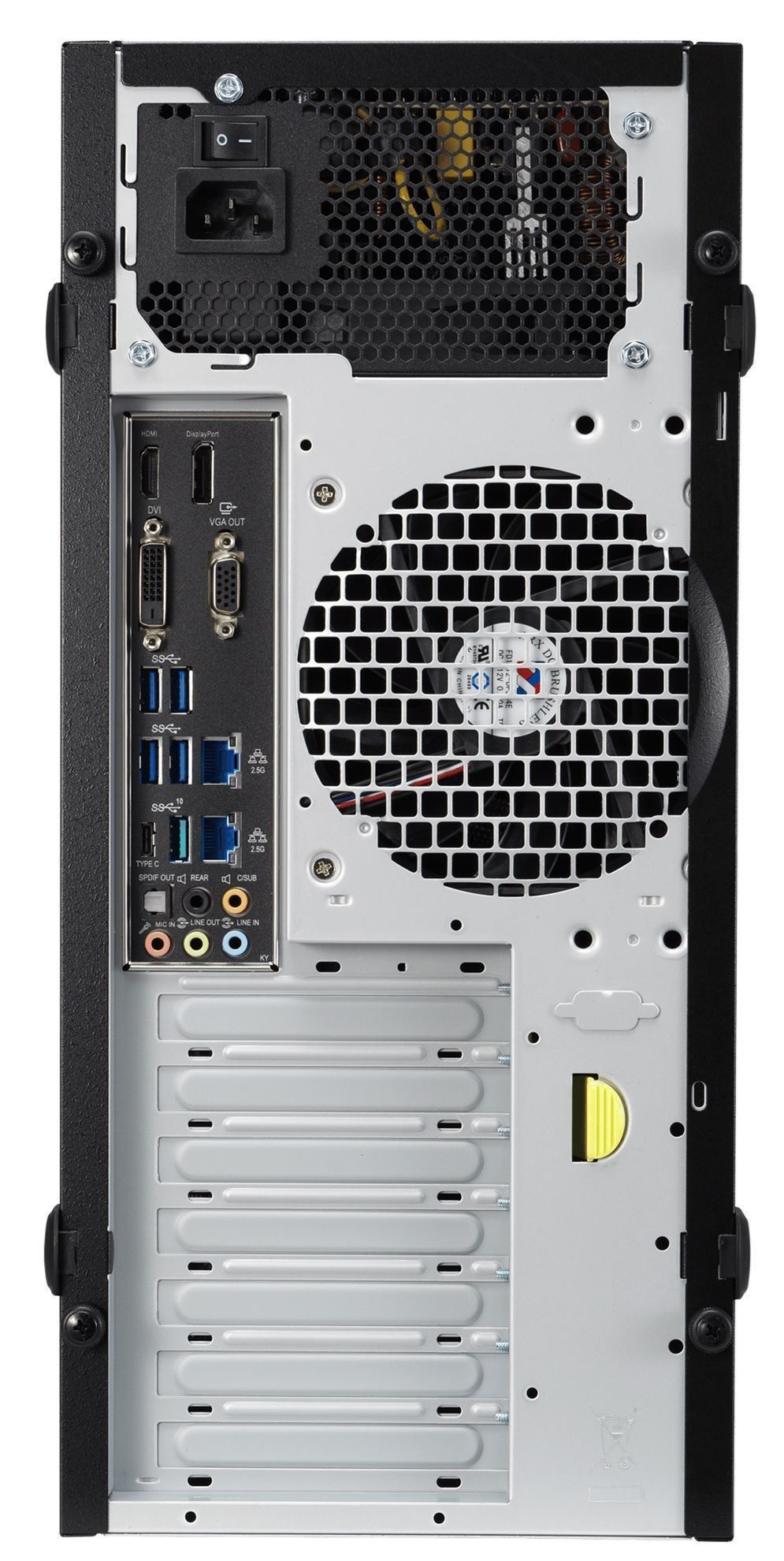

1 x USB 3.2 Gen2x2 port
2 x USB 3.2 Gen1 ports
1 x USB 2.0 port
1 x Headphone port
1 x Microphone port

2 x USB 3.2 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.2 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x LAN ports (RJ45)
1 x 7.1-channel Audio I/O ports (5+1 Audio jacks)

Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED

Please find the latest OS support from https://servers.asus.com/support/os

ASUS Control Center Express support
Intel^® vPro support

BSMI, CE, FCC

423mm x 190mm x 435mm
16.7" x 7.48" x 17.1"

Net Weight : 9.9 KG
Gross Weight : 12.1 KG

300W Bronze ATX Power Supply (100-127/220-240Vac, 6-3A, 50-60Hz, Class I)
550W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50-60Hz,)
750W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50/60Hz)

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)

Smart Card Reader
Anti-Virus CD pack
OS
DVD-ROM
Keyboard and mouse
COM port cable
Print port cable
